Privacy: redaction & zero-knowledge

mcppipe records each JSON-RPC call so the Inspector can show you what your agents did. This guide covers the three knobs that decide how much of a request is stored, from masking a single argument to a zero-knowledge mode where mcppipe never parses your traffic at all.

One distinction runs through everything below: the recorded copy is not the upstream wire. Privacy mode and redaction rules only ever touch the jsonrpc_events row the Inspector renders. Your MCP server always receives the real, unmodified request. Zero-knowledge mode is the exception that also stops mcppipe from reading the bytes in the first place.

All three controls live on the Settings tab of a tunnel (the four tabs are Live, Inspector, Tools, and Settings — see the dashboard reference). They are available on every plan.

Privacy mode (redact all payloads)

The simplest control is an all-or-nothing toggle. In the Privacy section of Settings, turn on Redact request payloads. It saves immediately — no Save button — and applies to new requests from that point on.

With privacy mode on, mcppipe stores a placeholder instead of the body:

{
  "_redacted": true,
  "_note": "request payload not stored (tunnel privacy mode is on)"
}

The Inspector keeps the method, tool name, status, latency, and session — just not the argument contents. Existing recorded events are not rewritten; only new events are redacted.

Note

The toggle is also exposed over the API as redact_payloads on PATCH /api/tunnels/:id. The redact_payloads boolean always wins over the field-level rules below — if it is on, the entire payload is replaced and the per-field rules never run.

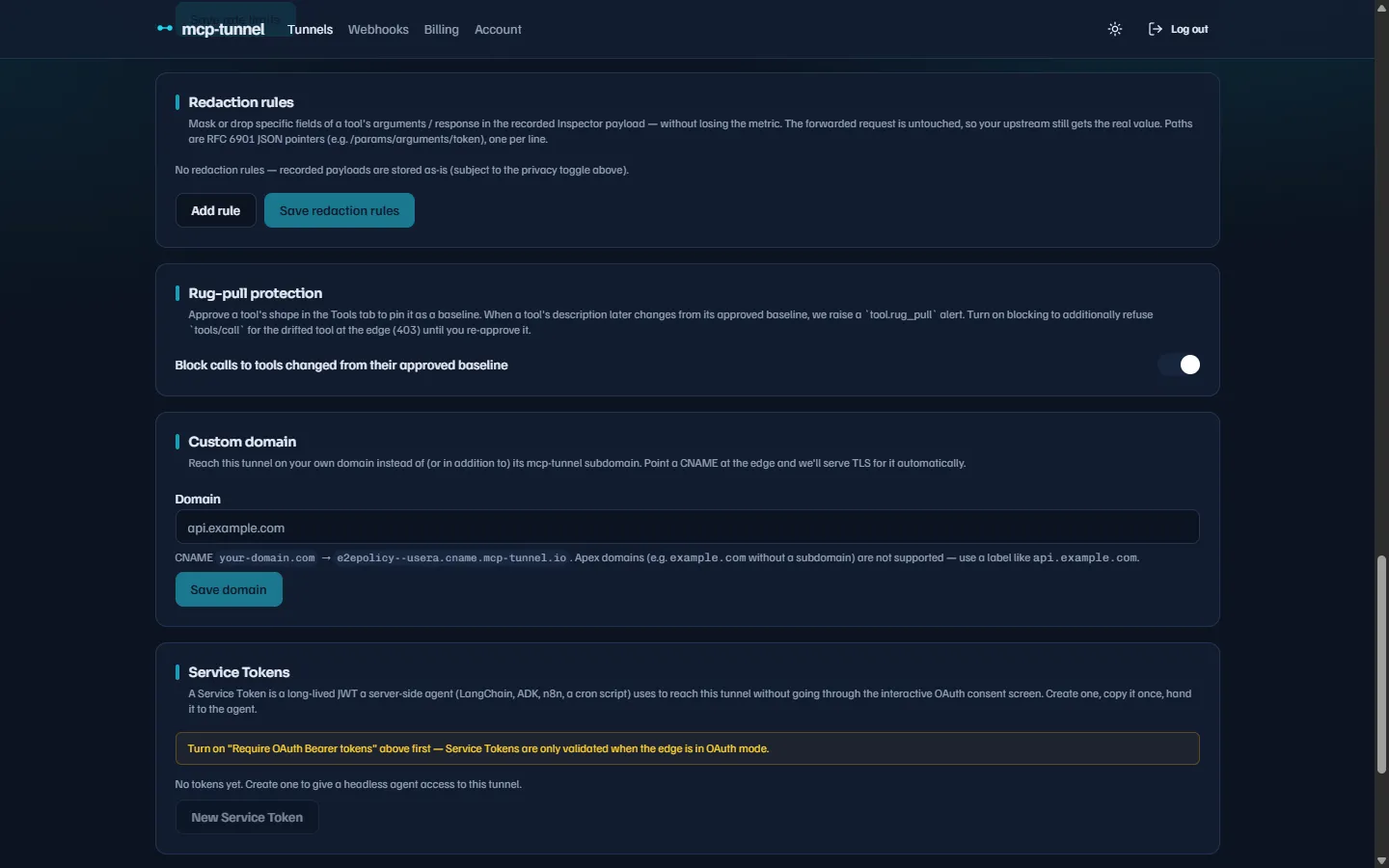

Field-level redaction rules

When you want the Inspector to stay useful but need to keep a specific secret out of storage, use Redaction rules. Each rule masks or drops individual fields of a tool’s arguments or response in the recorded payload only — the forwarded request is untouched, so your upstream still gets the real value.

Each rule targets a tool (or *), a mode (mask or drop), and one JSON pointer per line.

Each rule has four parts:

• Tool (or *) — the MCP tool name this rule matches. Use * to match every tool, including the payloads of non-tools/call methods.
• Mode — mask replaces the value with the string *** (the field stays present, so its shape is preserved); drop removes the key or array element entirely.
• Request paths — RFC 6901 JSON pointers into the request object whose values are redacted, one per line (e.g. /params/arguments/token).
• Response paths — JSON pointers into the response, applied when a recorded response is rendered, e.g. on Inspector replay (e.g. /result/content/0/text).

Click Add rule, fill it in, then Save redaction rules.

Pointer rules and limits

Pointers are resolved against the full JSON-RPC object, so a tools/call argument lives at /params/arguments/<name>. Validation enforces:

• Each pointer must be non-empty and start with /. The empty pointer (which would target the whole document) is refused on save and ignored by mcppipe — a rule can never blank an entire payload by accident.
• A rule needs at least one request or response path.
• Up to 32 rules per tunnel, and up to 32 paths per rule.
• A pointer that doesn’t resolve (the field is absent) simply redacts nothing — no error.

For example, a rule for tool send_email with mode mask and request path /params/arguments/api_key turns this recorded request:

{ "params": { "name": "send_email", "arguments": { "to": "a@b.com", "api_key": "sk-live-123" } } }

into:

{ "params": { "name": "send_email", "arguments": { "to": "a@b.com", "api_key": "***" } } }

while the upstream still receives sk-live-123 verbatim.

Tip

Field-level rules are the granular middle ground between “store everything” and privacy mode’s all-or-nothing redaction. Reach for them when you want most of the payload visible in the Inspector but need a few sensitive fields kept out of storage.

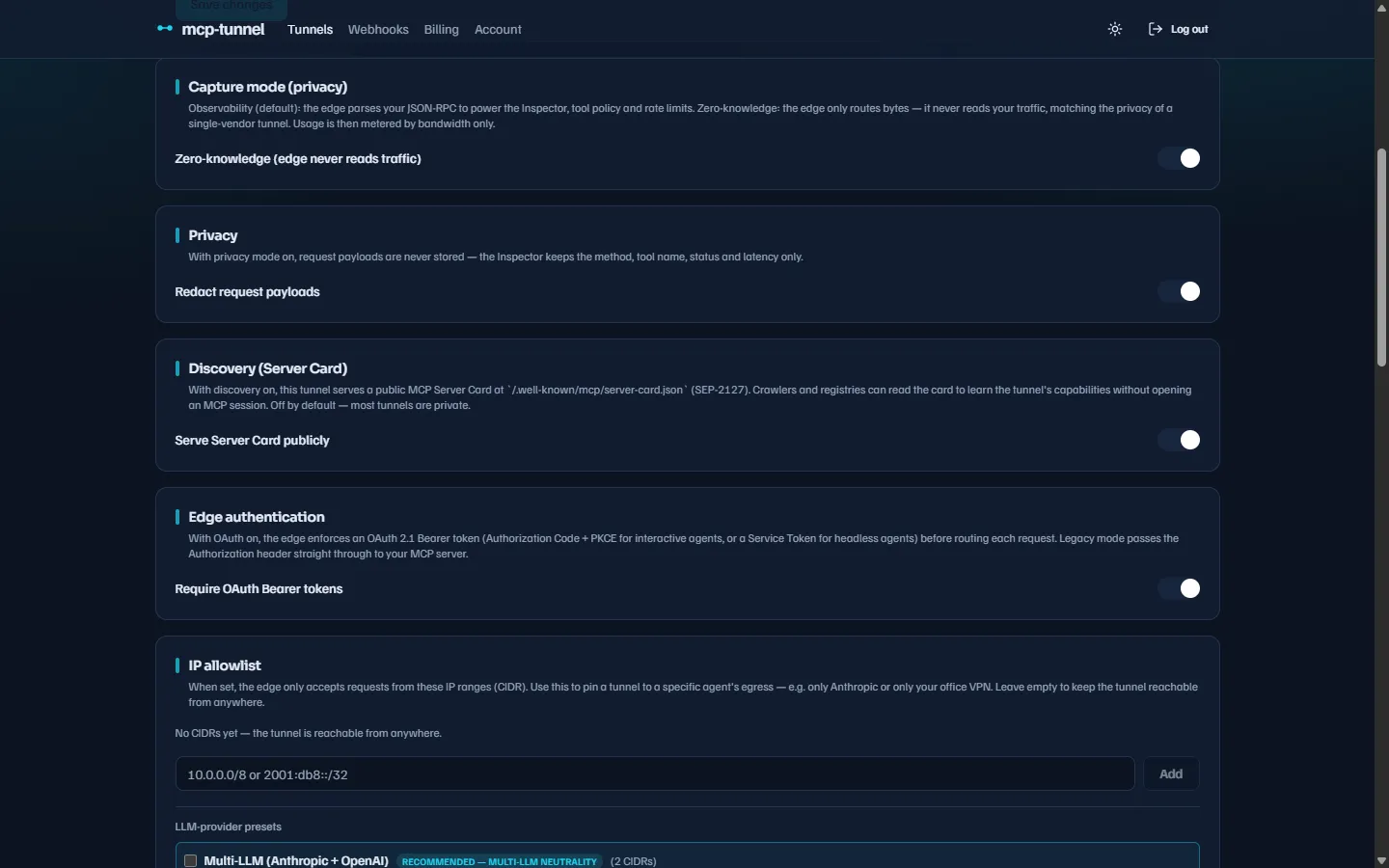

Zero-knowledge mode

Privacy mode and redaction rules still let mcppipe read your traffic to record metadata. Zero-knowledge mode goes further: mcppipe terminates TLS and relays the raw bytes to your server without ever parsing the JSON-RPC.

In the Capture mode (privacy) section, turn on Zero-knowledge (edge never reads traffic). The default mode is Observability, where mcppipe parses your JSON-RPC to power the Inspector, tool policy, and rate limits.

Zero-knowledge matches the privacy of a single-vendor tunnel — mcppipe only routes bytes.

When zero-knowledge is on, for that tunnel mcppipe does not:

• parse the request body,
• record a jsonrpc_events row (no Inspector, no Live tail),
• apply the tool policy or per-method/per-tool rate limits,
• evaluate redaction rules (there is no recorded payload to redact),
• run tool-pin / rug-pull checks.

Because mcppipe can’t count tool calls without parsing, usage is metered by bandwidth only — bytes in and out still flow to your plan’s transfer quota. Zero-knowledge is available on every tier.

Caution

Controls that don’t need to read the payload still apply in zero-knowledge mode: the per-tunnel IP allowlist and OAuth / Service Token enforcement both run before the request is relayed. The content-inspecting sections of Settings are shown inert (greyed out) while zero-knowledge is on, because mcppipe ignores them for this tunnel.

A zero-knowledge request runs no content inspection — no tool policy, rate limits, or redaction — and records no traffic event.

Which control to use

Goal	Use
Keep metadata, drop all argument contents	Privacy mode (redact all payloads)
Keep most of the payload, hide a few fields	Field-level redaction rules
mcppipe must never read your traffic at all	Zero-knowledge mode

All three are per-tunnel and can be changed at any time from Settings; changes apply to new requests. Redaction never alters what your upstream MCP server receives — only zero-knowledge changes what mcppipe itself sees.
